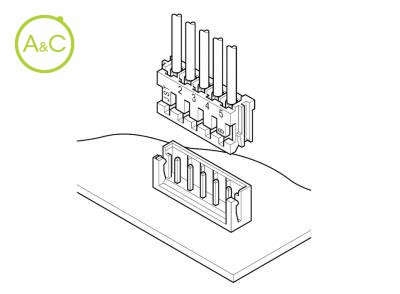

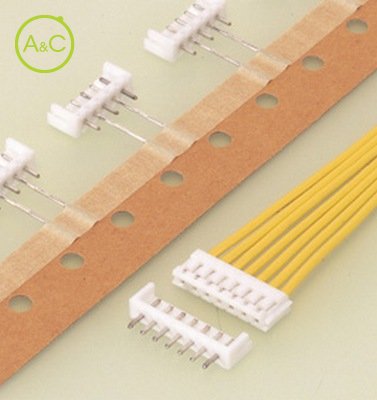

Side Entry Shrouded Header THT

  • EH CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
Article Number S10B-EH
Number Of Contacts 10
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Eigenschappen verschillen tussen varianten en subvarianten
Thin design. The dimple at the center of the contact ensures positive contact and low contact resistance at all times. The contact has a long wire strip length, 2.6 +/-0.4mm (.102"+/-.016"). The same header can be used for either the crimp style or the insulation displacement configuration HR connectors. Compact and slim This connector is designed to be compact and unusually thin. It measures only 8.1mm (.319") high after mounting and is just 3.8mm (.150") wide. Highly reliable contact The contact has long dimples near the centre that ensure continuity of low voltage and low current circuits at all times, even under conditions of vibration and abusive prying. Polarizing guides The header and housing have guides to prevent improper mating. Easy and effective crimping Although the contact is compact, it has a long wire strip length, 2.6±0.4mm (.102"±.016"). This long length is very useful for automatic crimping and when crimping shielded wires. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75089 RoHS Compliant
