Higo
Number Of Poles
- 5 (2+3)

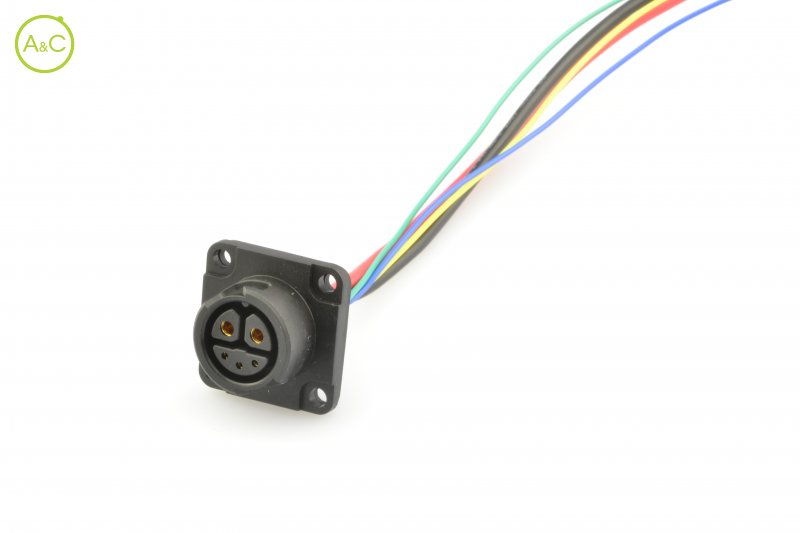

| Article Number | S526AM C 00 B9 0300 |
| Color | Black/Purple |

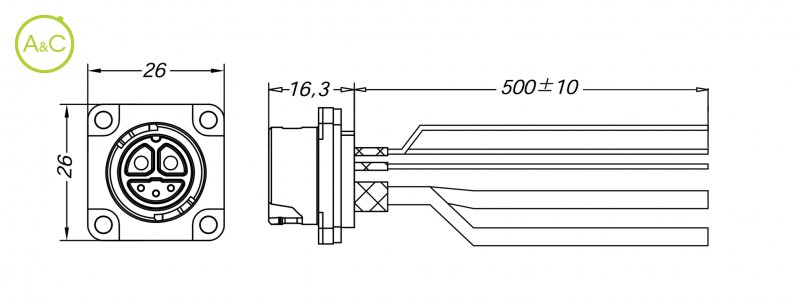

| Connector Diameter | 26,0 x 26,0 mm |
| Wire Section | 2 x 2,0 + 3 x 0,2 mm² |
| Cable Length | 300 mm |
| Protection Degree | IP67 |
| Mating Cycles | 3000 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Phosphor Bronze |
| Insulation Wire | PVC |
| Remark | Other cable length/type on request |
| Rated Current | 25 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold plated |
Eigenschappen verschillen tussen varianten en subvarianten
