Higo
Number Of Poles
- 8 (2+6)
| Article Number | S824BM C 03 FS 0300 |
| Color | Black |

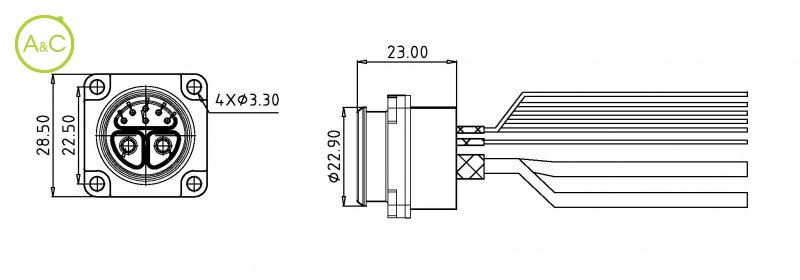

| Connector Diameter | 22.9 mm |
| Wire Section | 2 x 4,0 + 6 x 0,20 mm² |
| Cable Length | 300 mm |
| Protection Degree | IP67 |
| Mating Cycles | 3000 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Brass |
| Insulation Wire | PVC |
| Remark | Other cable length/type on request |
| Rated Current | 40 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
Eigenschappen verschillen tussen varianten en subvarianten
