JST
Applicable Wire
- AWG 18
- AWG 22 to 18
| Article Number | SAITW-A02GF-064 | SAITW-A02T-064 |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| General Description | Sealed Connector | Sealed Connector |
| Applicable Wire Size | 0.75 to 0.85 (AWG #18) mm² | 0.75 to 0.85 (AWG #18) mm² |
| Connection Type | Automotive | Automotive |
| Pitch / Style | 2.54 mm | 2.54 mm |
| Rated Current (ac/dc) | 5 A | 5 A |
| Rated Voltage (ac/dc) | 14 V | 14 V |
| Remark | Nickel-undercoated | Tin-plated |
Eigenschappen verschillen tussen varianten en subvarianten

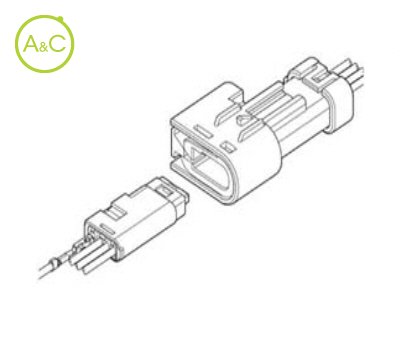

Miniaturized 0.64mm sealed wire-to-wire connector for automotive application.
Ultra miniaturized 0.64 sealed female connector for extremely tight packaging conditions
RoHS Compliant
