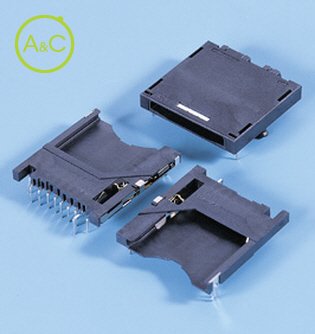

Connector for SD Memory Card and Multi Media Card

SD CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	SD-C-9BND-P23-332
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	SD Card Connector (Through hole Type)
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	5 V
Standard	SD
Pcb Mount Style	Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

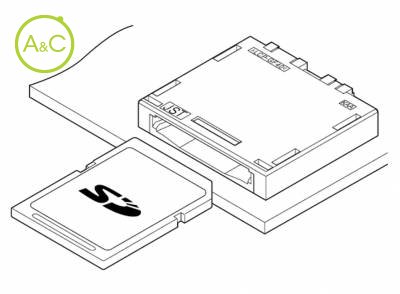

The SD connector is designed for the SD (Secure Digital) memory card. Also applicable to the MMC (Multi Media Card). Card detection switch equipped type is also available. This connector has a write-protect switch to prevent accidental card data deletion. Push-push mechanism The card can be ejected by simple push-push operation. Card-detection switch Card-detection switch and write-protect switch equipped types are also available. Static electricity shielding GND contacts are designed to be protected against static electricity. RoHS Compliant
