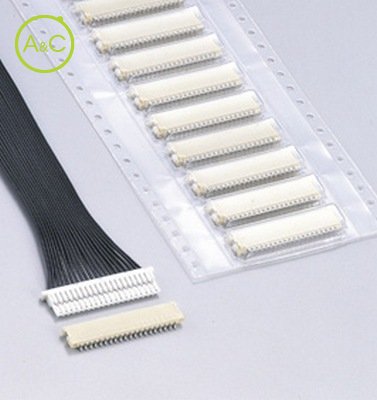

Female panel mount connector

SHL CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	SHLP-02V-S-B
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-05V-S-B
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-06V-S-B
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-07V-S-B
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-08V-S-B
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-10V-S-B
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-11V-S-B
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-12V-S-B
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-14V-S-B
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-16V-S-B
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-20V-S-B
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-22V-S-B
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-26V-S-B
Number Of Contacts	26
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SHLP-30V-S-B
Number Of Contacts	30
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Eigenschappen verschillen tussen varianten en subvarianten

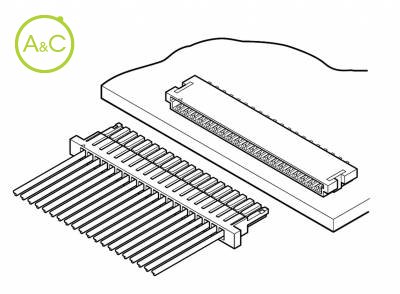

Thin design, mounting height is only 1.8mm (.071 inches) for normal type, and 1.4mm (.055 inches) for off-set type. Low insertion force, with the contact of unique construction featuring spring action, its insertion into the housing is easy, yet with clear click feeling. Deformation preventive design. Contact is designed to prevent the deformation during the crimping operation. Thin design The height after mounting on the PC board is only 1.8mm (.071") for normal type, and 1.4mm (.055") for off-set type. Low insertion force The contact has a clear click feeling. Spring action and unique design of the contact makes contact insertion into the housing easy, and contact pressure is retained after repeated mating/unmating. Deformation preventative design The contact has a deformation preventative configuration, which, in spite of the very thin design of the connector, is resistant to distortion. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
