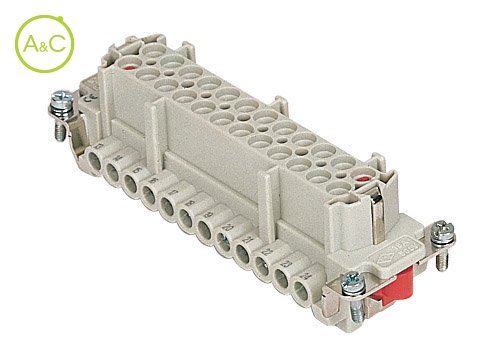

Inserts, 10 + 2(aux)P+ PE, screw terminal connection
Meer info over dit merk:
Ilme
Ilme
- General
| Article Number | CMEF 10 TX |
| Pollution Degree | 3 |
| Number Of Poles | 10 |
| Connection Type | Screw connection |
| Contact Type | Female |
| Extra Information | With protective conductor |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Min. Cross Section With End Sleeve | 0.25 mm² |
| Max. Cross Section With End Sleeve | 2.5 mm² |
| Required Housing |
T-type size 104.27 T-type/W size 104.27 T-type/H size 104.27 T-type/C size 104.27 W-type size 104.27 830V size 104.27 COB size 104.27 |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 830 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 8 kV |
Eigenschappen verschillen tussen varianten en subvarianten
