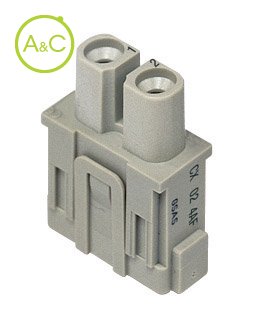

Modular units 2P, screw connection

Female inserts with female contacts
Silver plated contacts

size 49.16-CX 02 4AF

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Cable Section

2.5-8 mm²
6-10 mm²

Article Number	CX 02 4AF
Pollution Degree	3
Number Of Poles	2
Connection Type	Axial screw connection
Contact Type	Female
Extra Information	With wire protection
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section Without End Sleeve	2.5 mm²
Max. Cross Section Without End Sleeve	6 mm²
Diameter Male Contact	4 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	40 A
Nominal Rated Voltage	1000 V
Over Voltage Category	III
Rated Surge Voltage	8 kV

Article Number	CX 02 4BF
Pollution Degree	3
Number Of Poles	2
Connection Type	Axial screw connection
Contact Type	Female
Extra Information	/
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section Without End Sleeve	6 mm²
Max. Cross Section Without End Sleeve	10 mm²
Diameter Male Contact	4 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	40 A
Nominal Rated Voltage	1000 V
Over Voltage Category	III
Rated Surge Voltage	8 kV

Eigenschappen verschillen tussen varianten en subvarianten
