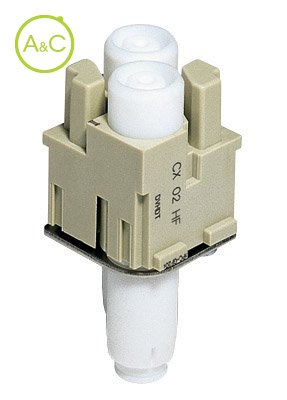

High voltage modular units 2P, crimp connections

  • Female inserts high voltage for female contacts
Download product sheet
  • General
Article Number CX 02 HF*
Pollution Degree 3
Number Of Poles 2
Connection Type Crimp connection
Contact Type Female
Remark Only for bulkhead mounting housings, high construction housings or high construction hoods
Required Crimp Contacts CCFA 0.3, CCFA 0.5, CCFA 0.7, CCFA 1.0, CCFA 1.5, CCFA 2.5, CCFA 3.0, CCFA 4.0, CCFD 0.3, CCFD 0.5, CCFD 0.7, CCFD 1.0, CCFD 1.5, CCFD 2.5, CCFD 3.0, CCFD 4.0, CCFC 0.3, CCFC 0.5, CCFF 0.3, CCFF 0.5, CCF2D 0.3, size 77.27mixo-CCF2D 5.0, CCF2D 0.7, CCF2D 1.0, CCF2D 1.5, CCF2D 2.5, CCF2D 3.0, CCF2D 4.0, CCFJD 0.3, size 77.27mixo-CCFJD 5.0, CCFJD 0.7, CCFJD 1.0, CCFJD 1.5, CCFJD 2.5, CCFJD 3.0, CCFJD 4.0
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Diameter Male Contact 2.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 16 A
Nominal Rated Voltage 2900/5000 V
Over Voltage Category IV
Rated Surge Voltage 15 kV
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
CHES
Contact holder removal tool
CR CPQ*
Plain coding pin for CDC, CQ,CQE,CCE,CMCE and MIXO 16A inserts
