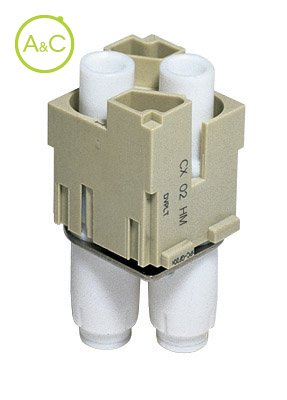

High voltage modular units 2P, crimp connections
Meer info over dit merk:
Ilme
Ilme
- General
| Article Number | CX 02 HM* |
| Pollution Degree | 3 |
| Number Of Poles | 2 |
| Connection Type | Crimp connection |
| Contact Type | Male |
| Remark | Only for bulkhead mounting housings, high construction housings or high construction hoods |
| Required Crimp Contacts | CCMA 0.3, CCMA 0.5, CCMA 0.7, CCMA 1.0, CCMA 1.5, CCMA 2.5, size 77.27 mixo-CCMA 3.0size 77.27 mixo-CCMD 0.3, CCMD 0.5, CCMD 0.7, CCMD 1.0, CCMD 1.5, CCMD 2.5, CCMD 3.0, CCMC 0.3, CCMC 0.5, CCMF 0.3, CCMF 0.5, CCM2D 0.3, size 77.27mixo-CCM2D 5.0, CCM2D 0.7, CCM2D 1.0, CCM2D 1.5, CCM2D 2.5, CCM2D 3.0, CCM2D 4.0, CCMJD 0.3, size 77.27mixo-CCMJD 5.0, CCMJD 0.7, CCMJD 1.0, CCMJD 1.5, CCMJD 2.5, CCMJD 3.0, CCMJD 4.0 |
| Extra Information | Contact insert without contacts |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 2900/5000 V |
| Over Voltage Category | IV |
| Rated Surge Voltage | 15 kV |
Eigenschappen verschillen tussen varianten en subvarianten
