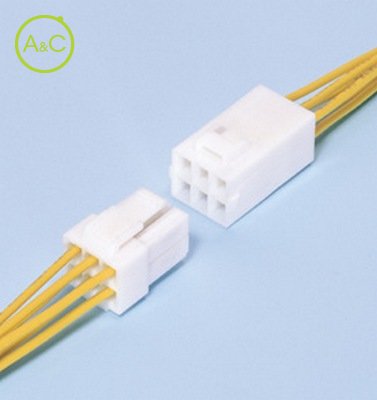

Receptacle Housing For Pin Contact

SL CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	SLR-01VF
Number Of Contacts	1
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Article Number	SLR-02VF
Number Of Contacts	2
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Article Number	SLR-03VF	SLR-03VF-MD	SLR-03VF-MD
Number Of Contacts	3	3	3
Upper Temperature	+90 °C	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style	3.96mm Pitch Disconnectable Crimp Style	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	3.96 mm	3.96 mm	3.96 mm
Rated Current (ac/dc)	7.0 A	7.0 A	7.0 A
Rated Voltage (ac/dc)	300 V	300 V	300 V
Remark	Secure locking device		Secure locking device
Extra Information	/		Both side lock

Article Number	SLR-04VF
Number Of Contacts	4
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Article Number	SLR-06VF
Number Of Contacts	6
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	3.96mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	3.96 mm
Rated Current (ac/dc)	7.0 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Eigenschappen verschillen tussen varianten en subvarianten

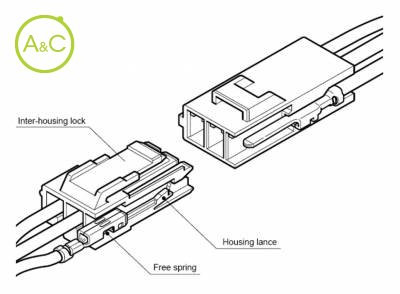

Low insertion force contacts reduce surface wear and reduce the effects of stress relaxation. Low insertion force contact The low insertion force contacts reduce surface finish wear and reduce the effects of stress relaxation. Housing lance The resilient plastic housing lances secure the contacts in the housing. Since the lances are in the housings rather than on the contacts, they are not affected by handling, and allow the contacts to be lightly inserted without undue force. This establishes a feeling of uniform insertion and a noticeable change in that feeling when insertion is completed. Inter-housing lock This inter-housing lock secures the plug to the receptacle and prevents accidental diSConnection. The lock is protected and is not affected by external forces that might result from the routing of wires. Standards UL Recognized E60389 CSA Certified LR20812 TUV R9351104 RoHS Compliant
