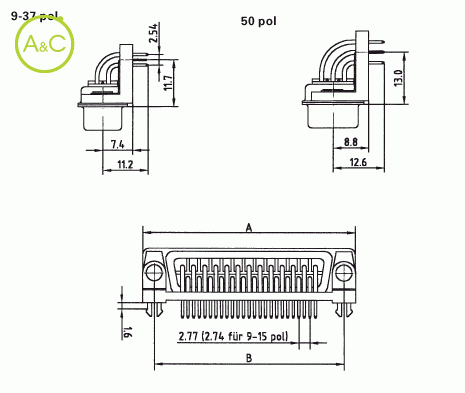

Dip solder version 90°

Bracket with through hole for grounding and UNC 4-40 thread
With stamped contacts

ST 09 166 G.TE4B

ST 09 166 G.TE4B

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

9
15
25
37

Article Number	ST 09 166 G.TE4B**
Number Of Contacts	9
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark *	For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	ST 15 166 G.TE4B**
Number Of Contacts	15
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark *	For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	ST 25 166 G.TE4B**
Number Of Contacts	25
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark *	For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	ST 37 166 G.TE4B**
Number Of Contacts	37
Upper Temperature	+ 125 °C
Lower Temperature	-55 °C
Contact Plating	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark *	For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0
Test Voltage	1 V ~
Insulation Resistance	1010 MΩ
Current Rating	5
Contact Resistance	≤ 10 m
Gender	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
