Higo
Number Of Poles
- 11 (3+8)

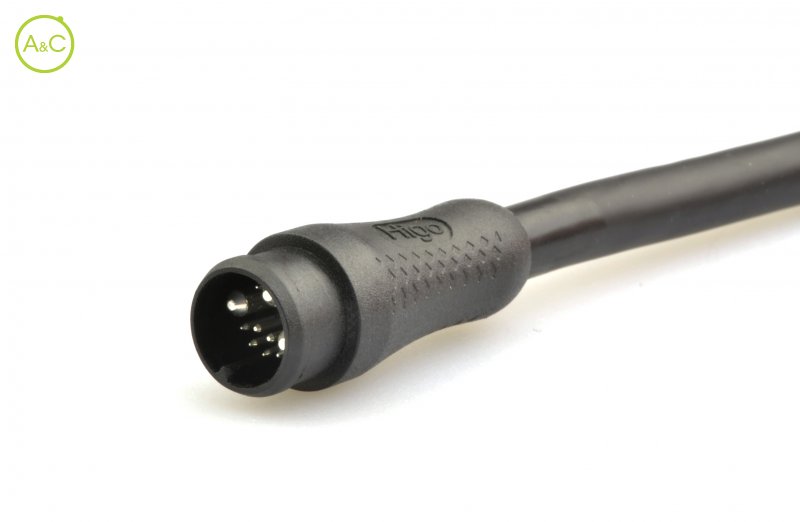

| Article Number | Z1115AGP 00 DU 1000 |
| Color | Black |

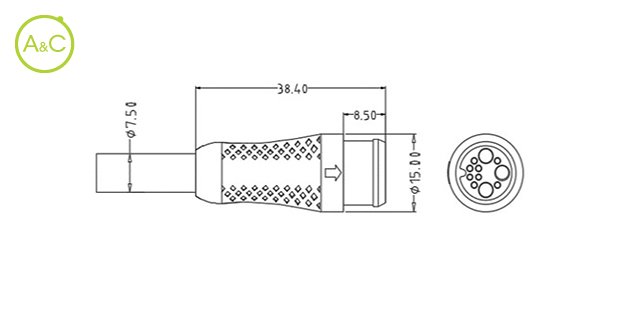

| Connector Diameter | 15 mm |
| Wire Section | 3 x 2,5 + 8 x 0,14 mm² |
| Cable Length | 1000 mm |
| Protection Degree | IP67 |
| Mating Cycles | 200 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Copper Alloy |
| Cable Diameter | 7.5 mm |
| Insulation Wire | PTFE |
| Remark | Other cable length/type on request |
| Rated Current | 25 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
| Fitting Length | 70 mm |
| Material Jacket | PVC |
Eigenschappen verschillen tussen varianten en subvarianten
