Higo
Number Of Poles
- 12 (2+2+8)

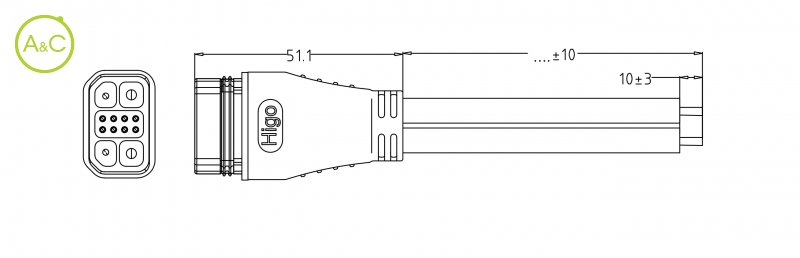

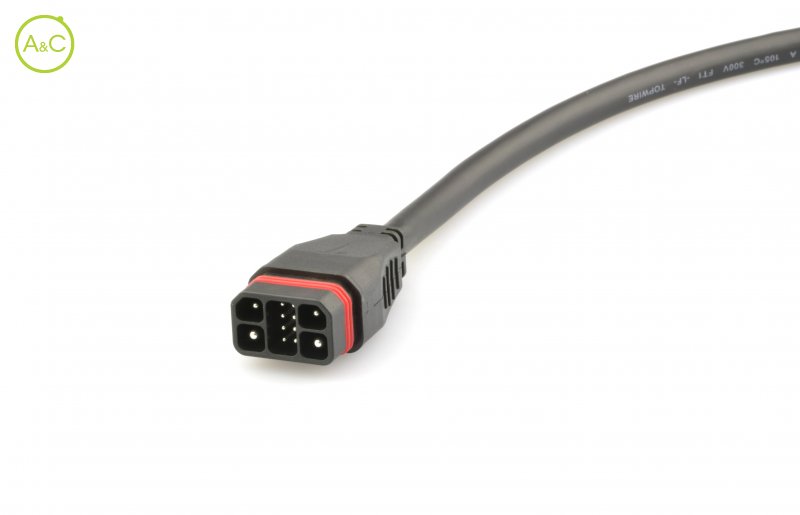

| Article Number | Z1228BG P 00 GK 1000 |
| Color | Black |
| Connector Diameter | 26.4 mm |
| Wire Section | 2 x 2,5 + 2 x 1,0 + 8 x 0,2 mm² |
| Cable Length | 1000 mm |
| Protection Degree | IP67 |
| Mating Cycles | 3000 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Brass |
| Cable Diameter | 8.5 mm |
| Insulation Wire | PVC |
| Remark | Other cable length/type on request |
| Rated Current | 25 / 10 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
| Fitting Length | 90.8 mm |
| Material Jacket | PVC |
Eigenschappen verschillen tussen varianten en subvarianten
