Number Of Poles
- 12 (2+2+8)

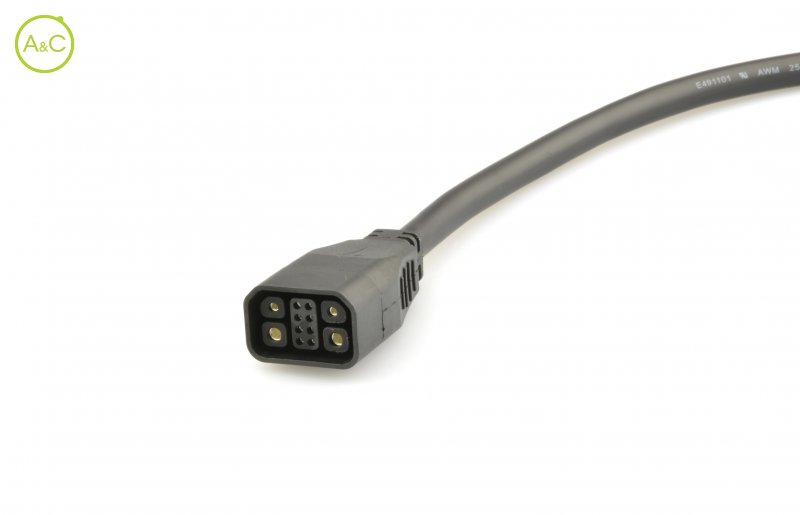

Article Number | Z1228BM P 00 GK 1000 |
Color | Black |

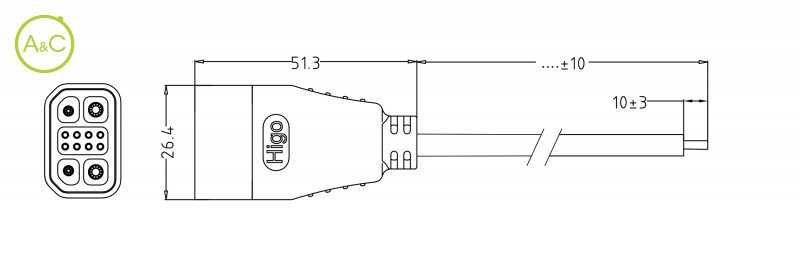

Connector Diameter | 26.4 mm |
Wire Section | 2 x 2,5 + 2 x 1,0 + 8 x 0,2 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 3000 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Phosphor Bronze |
Cable Diameter | 8.5 mm |
Insulation Wire | PVC |
Remark | Other cable length/type on request |
Rated Current | 25 / 10 / 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Fitting Length | 90.8 mm |
Material Jacket | PVC |
Eigenschappen verschillen tussen varianten en subvarianten
