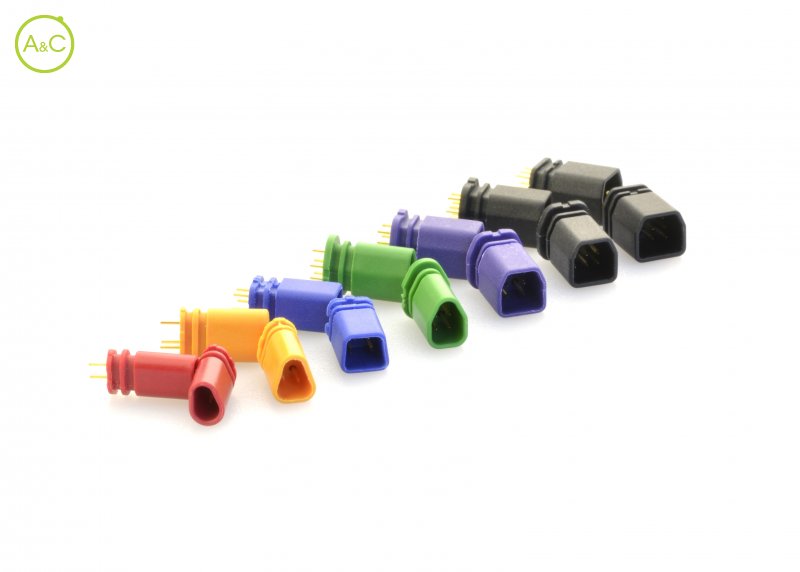

Mini F male panel mount connector

Straight PCB contacts

Z209FGC04000000

Z209FGC04000000

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

2
3
4
5
6
8
9

Article Number	Z209FG C 04 00 0000
Color	Red
Connector Diameter	6,5 x 6,3 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Article Number	Z309FG C 04 00 0000
Color	Yellow
Connector Diameter	7,1 x 5,5 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	49 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Article Number	Z409FG C 04 00 0000
Color	Blue
Connector Diameter	5,75 x 6,43 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	50 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Article Number	Z509FG C 04 00 0000
Color	Green
Connector Diameter	8,3 x 6,5 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	51 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Article Number	Z609FG C 04 00 0000
Color	Purple
Connector Diameter	7,9 x 7,9 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	52 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Article Number	Z809FG C 04 00 0000
Color	Black
Connector Diameter	7,9 x 7,9 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	53 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Article Number	Z909FG C 04 00 0000
Color	Black
Connector Diameter	6,9 x 7,7 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	54 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Contact Type	Straight PCB contacts

Eigenschappen verschillen tussen varianten en subvarianten
