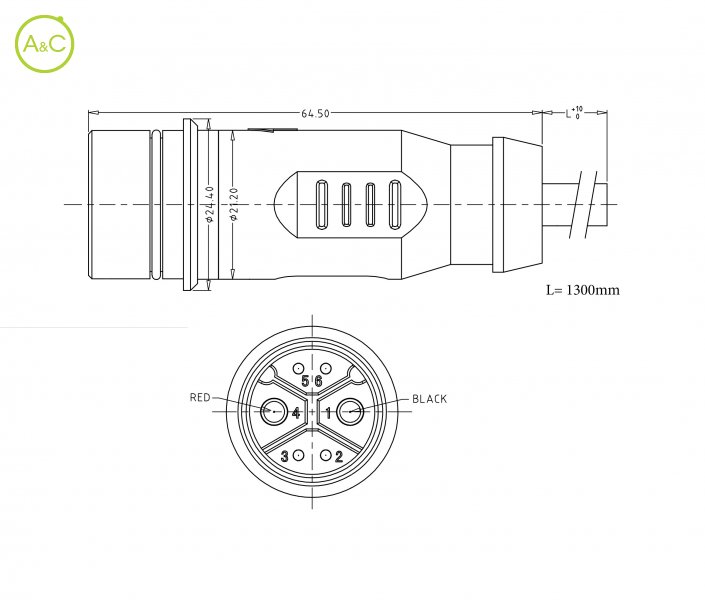

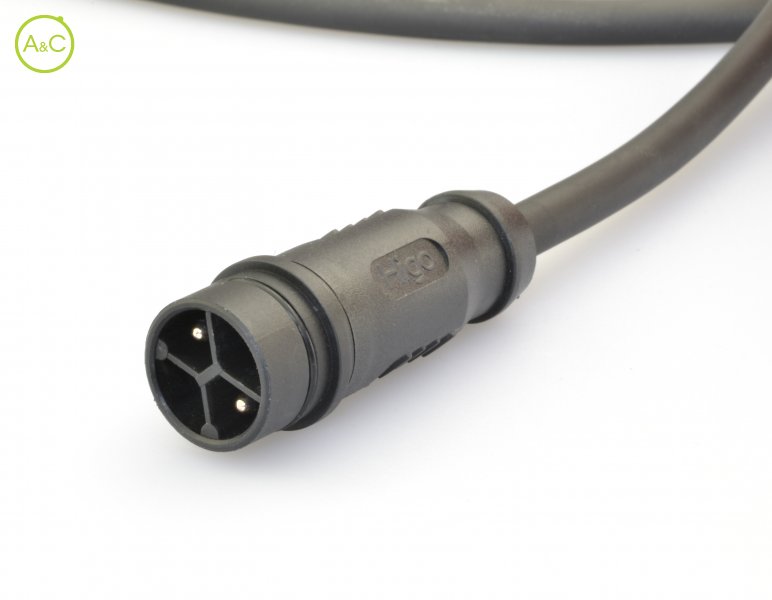

Battery male plug connector 48V code, no locking (push-on)
Meer info over dit merk:
Higo
Number Of Poles
- 6 (2+4)
Article Number | Z624BG P 00 B7 1000 |
Color | Black |
Connector Diameter | 21.2 mm |
Wire Section | 2 x 2,0 + 4 x 0,34 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 3000 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Brass |
Insulation Wire | PVC |
Remark | Other cable length/type on request |
Rated Current | 45 / 5 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Silver over Nickel |
Material Jacket | TPU |
Eigenschappen verschillen tussen varianten en subvarianten
