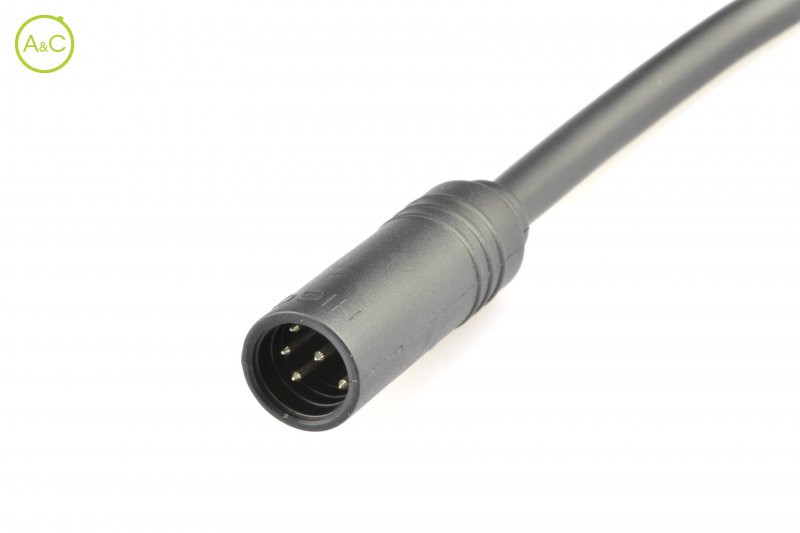

Main male plug connector

Heeft u nog vragen over dit product?

Download product sheet Download step file

Meer info over dit merk:

Article Number	Z812AG P 00 A5 1000
Color	Black
Connector Diameter	12 mm
Wire Section	0.2 mm²
Cable Length	1000 mm
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	5.8 mm
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel

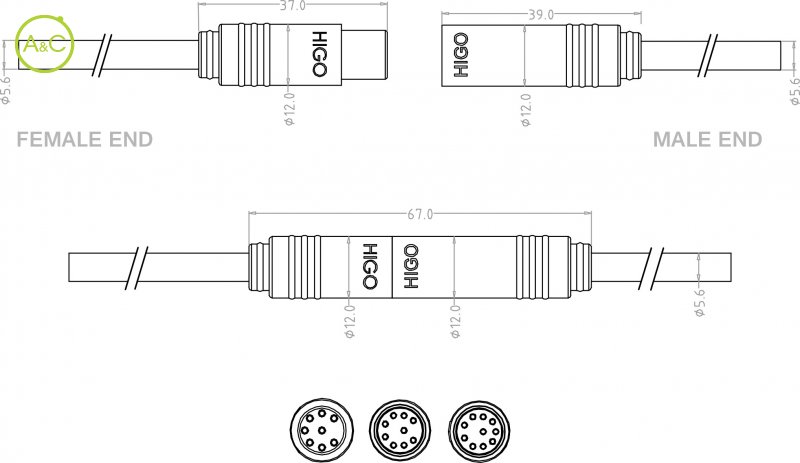

Fitting Length	67 mm
Material Jacket	PVC

Article Number	Z912AG P 00 A6 1000
Color	Black
Connector Diameter	12 mm
Wire Section	0.2 mm²
Cable Length	1000 mm
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	5.8 mm
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	67 mm
Material Jacket	PVC

Article Number	Z1012AG P 00 A7 1000
Color	Black
Connector Diameter	12 mm
Wire Section	0.2 mm²
Cable Length	1000 mm
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	5.8 mm
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	67 mm
Material Jacket	PVC

Eigenschappen verschillen tussen varianten en subvarianten
