Number Of Poles
- 9 (2+7)
Article Number | Z913CM P 00 FA 0000 |
Color | Black |

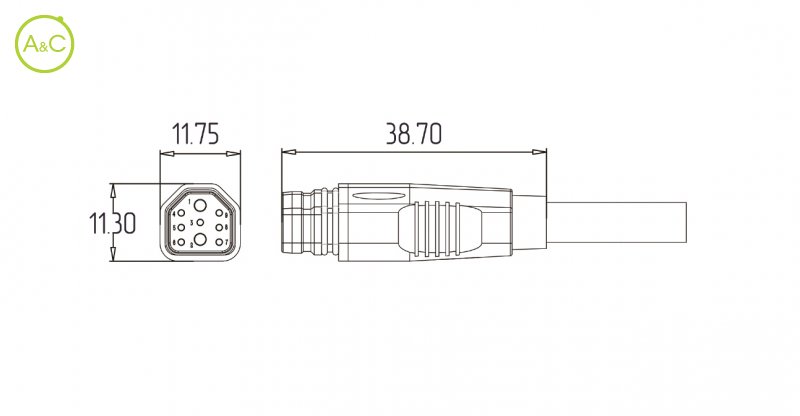

Connector Diameter | 11,30 x 11,75 mm |
Wire Section | 2 x 1,5 + 7 x 0,15 mm² |
Cable Length | 1000 mm |
Protection Degree | IPX7 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Copper Alloy |
Cable Diameter | 5.8 mm |
Insulation Wire | FEP |
Remark | Other cable length/type on request |
Rated Current | 15 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Fitting Length | 71 mm |
Material Jacket | PVC |
Eigenschappen verschillen tussen varianten en subvarianten
